1973 Toyota Land Cruiser FJ40 on 36" Iroks



Forest Grove, OR


Year, Make, Model

1973 Toyota Land Cruiser FJ40






Chevy 350, 4 bolt main


Gas, Holly Pro-Jection




Transfer Case

NP203 low range box/Land Cruiser 3 speed t-case

Front Axle

Toyota mini truck (8"), 5.29, no-slip locker, 30 spline RCV shafts/300m

Rear Axle

Stock Land Cruiser, 5.29, LockRight locker

Suspension and Steering


spring over


High Steer

Tires and Wheels


36" Super Swamper Iroks (50% tread)





Warn M8000

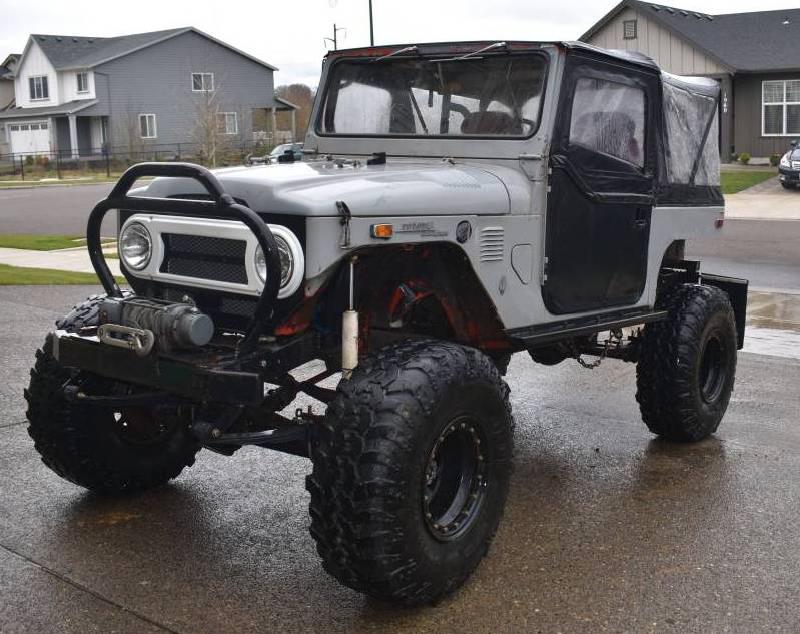

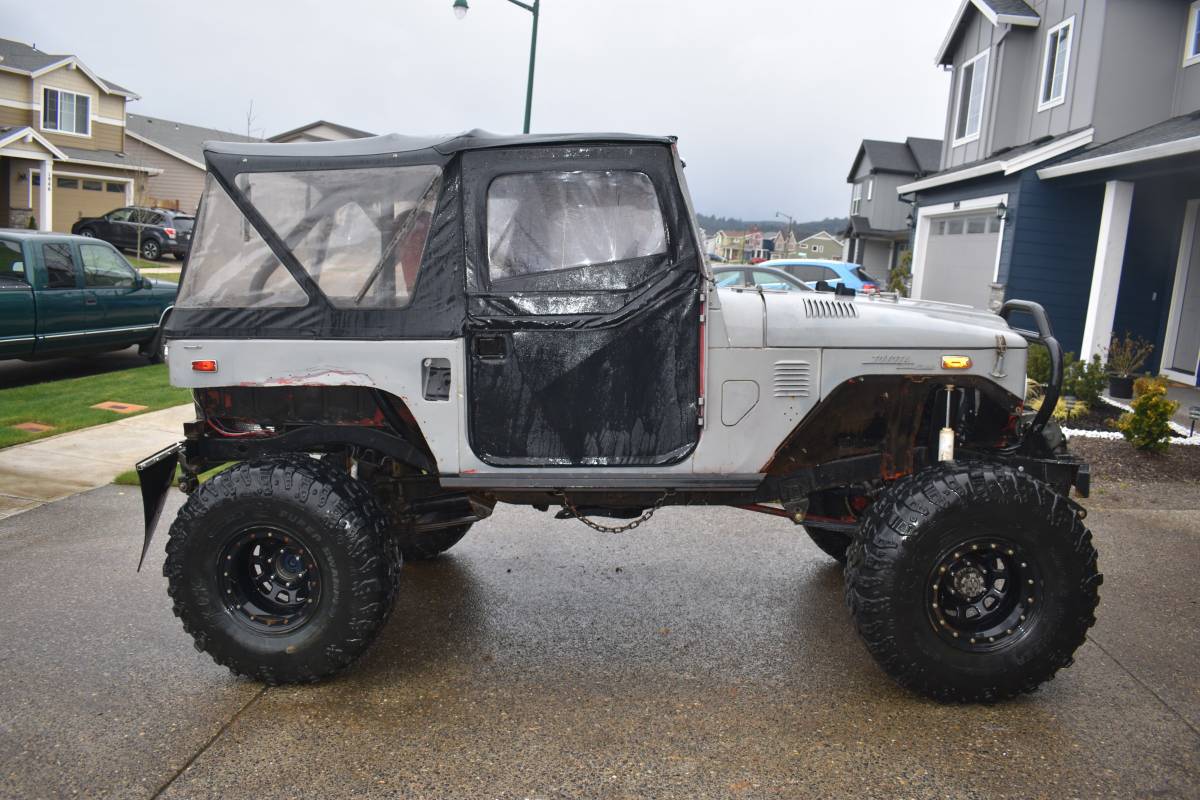

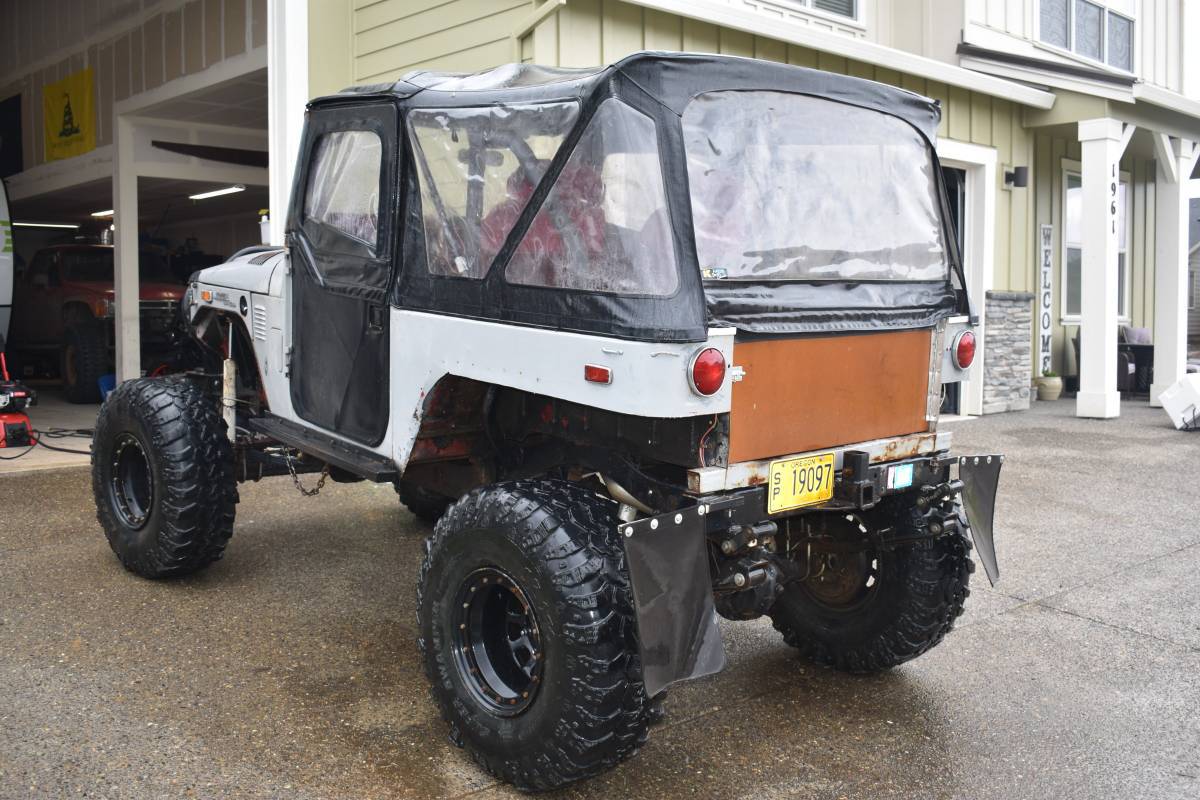

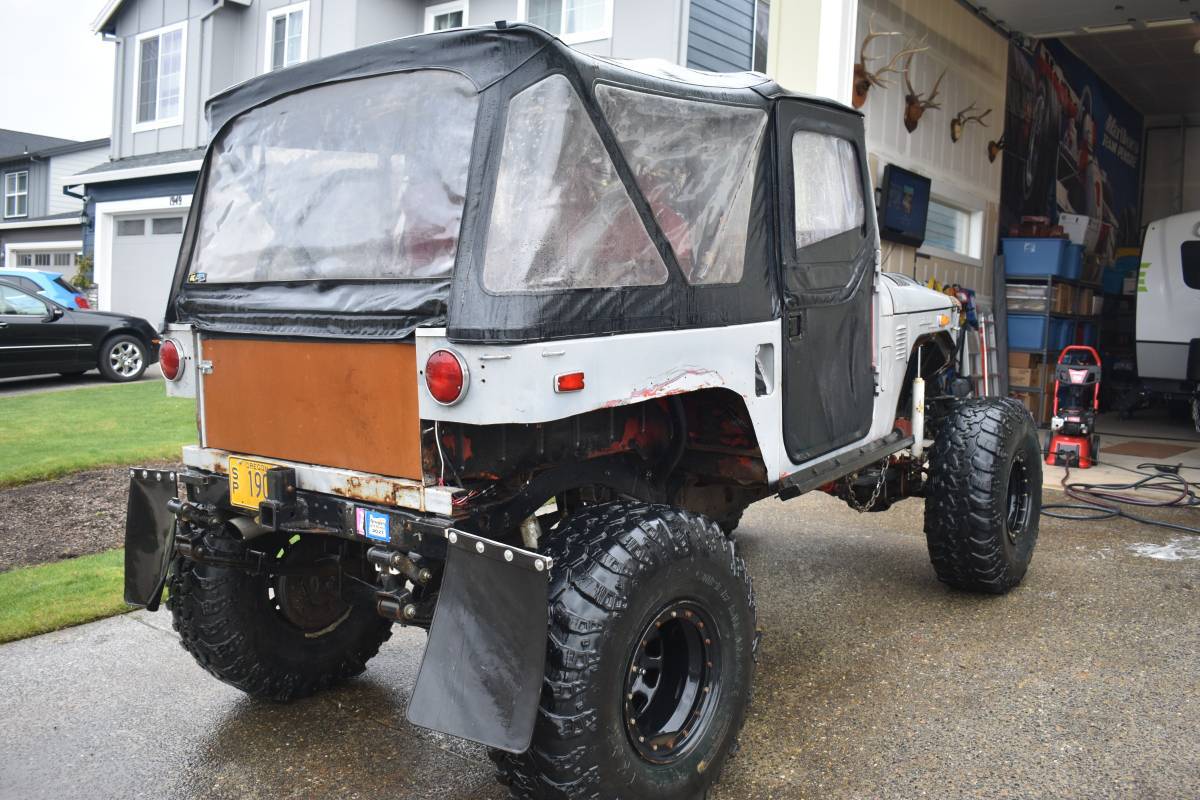

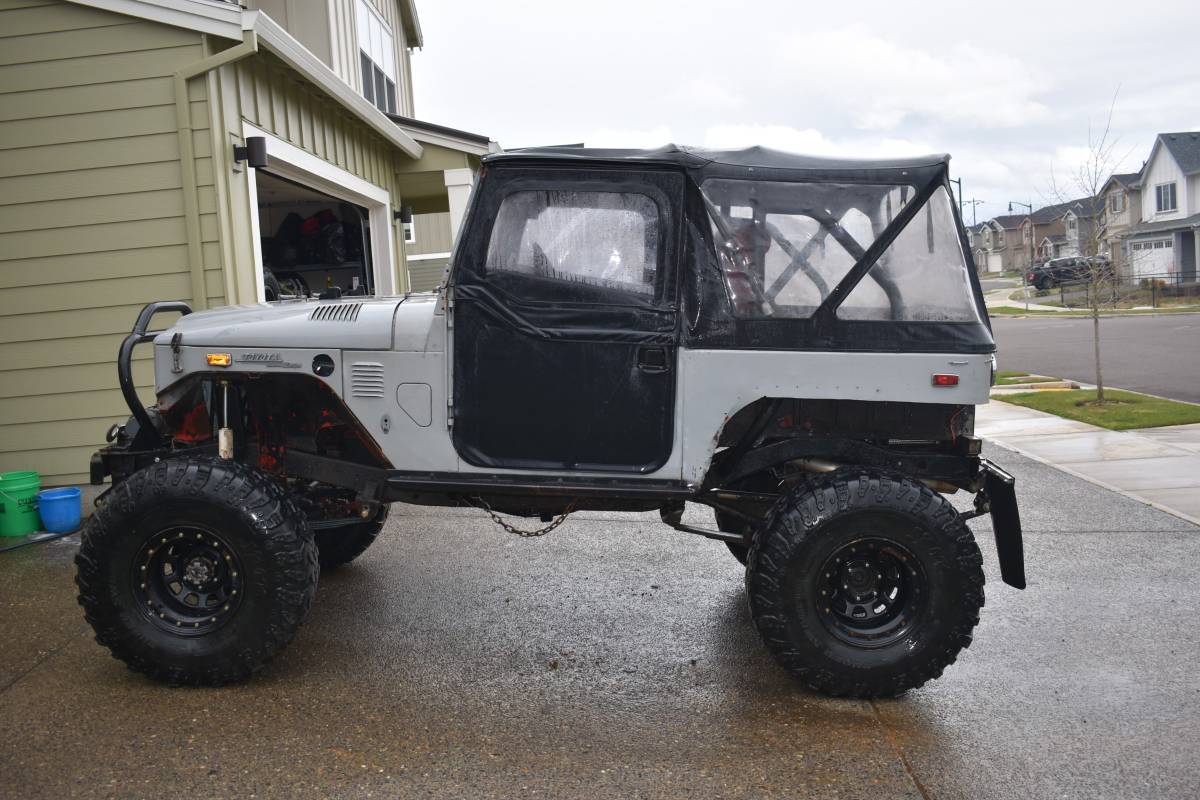

It is time to sell my 573 Toyota Land Cruiser FJ40. The body is straight, and the only rust is in the rear sill and a half inch hole where the factory fuel tank used to be. The rear quarters are comp cut and the front fenders have been cut as well. It has a Kayline soft top and BestTop 2-piece doors that do not leak.

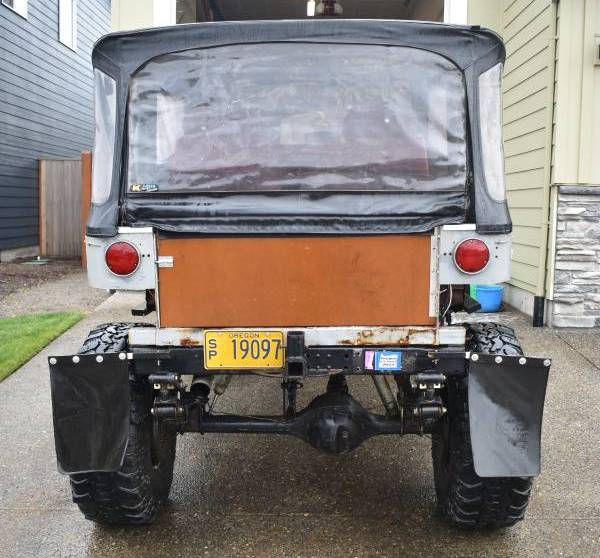

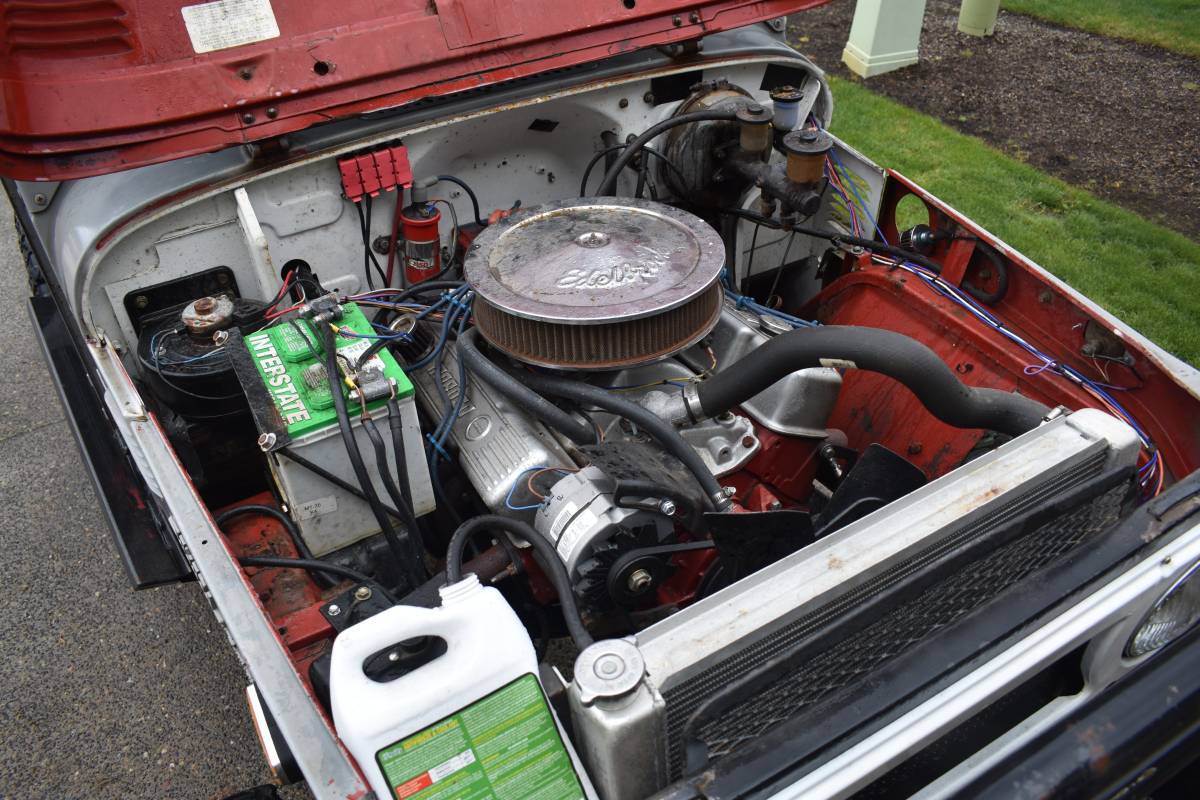

The engine is a Chevy 350 4 bolt main with Holly Pro-Jection and a thumper cam. Transmission is a SM420 mated to a 203 low range box to a Land Cruiser “3-spd” transfer case. Front axle is a built Toyota 8” with 5.29 gears, no-slip locker, 30-spline RCV axle shafts with 300m inners, 300m hub gears, and high steer. Rear axle is Toyota 9.5” semi-float with 5.29 gears and a LocRite locker. Tires are 36” radial Iroks (50% tread) on steel “street lock” wheels.

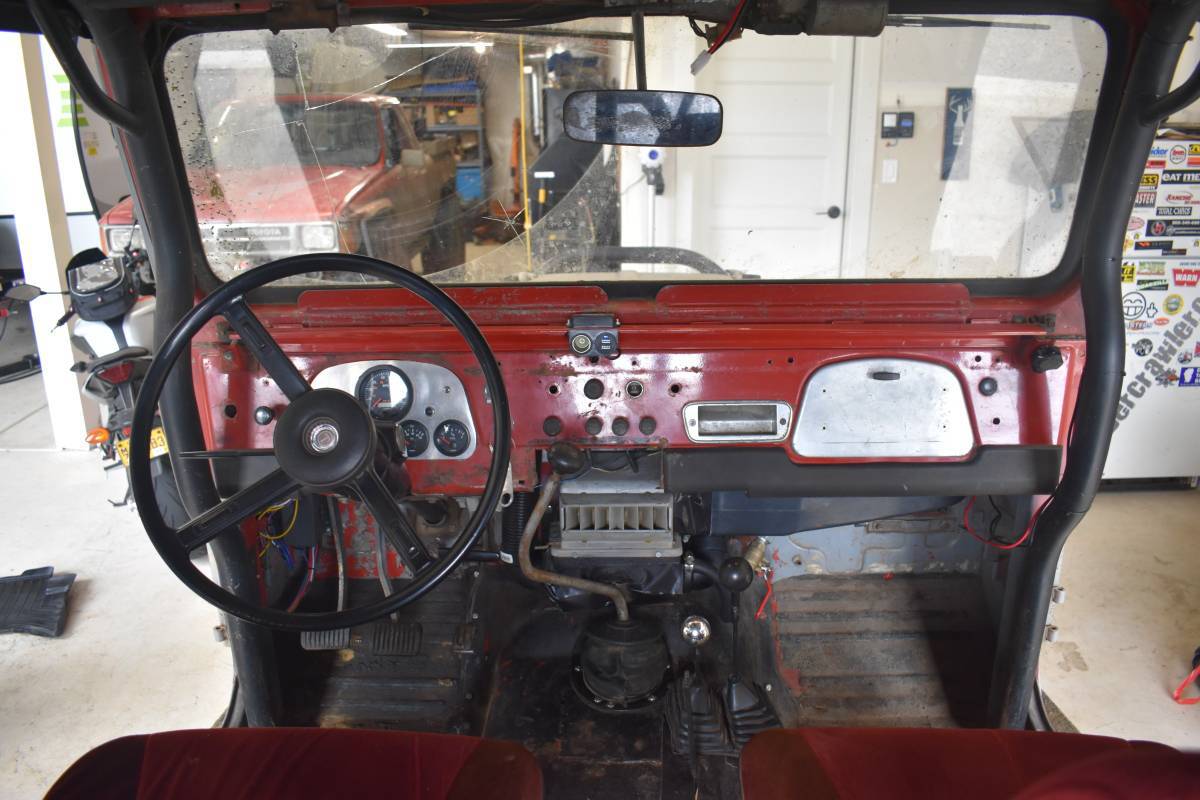

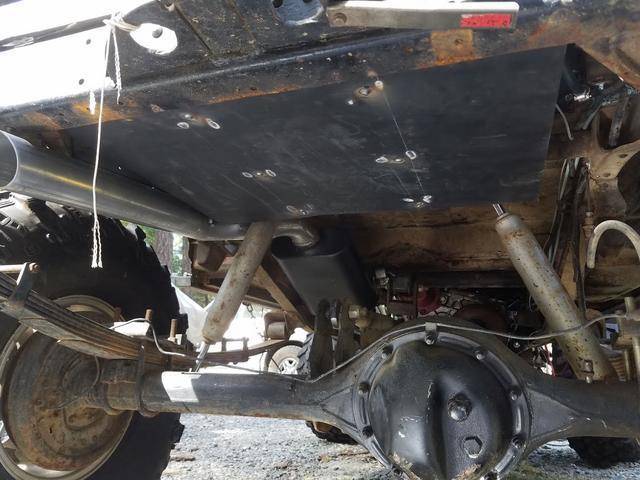

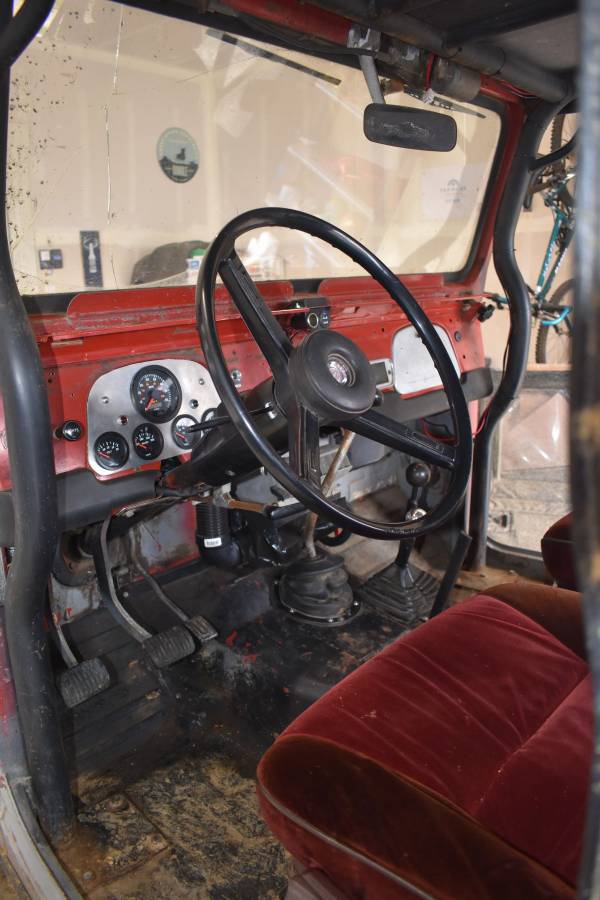

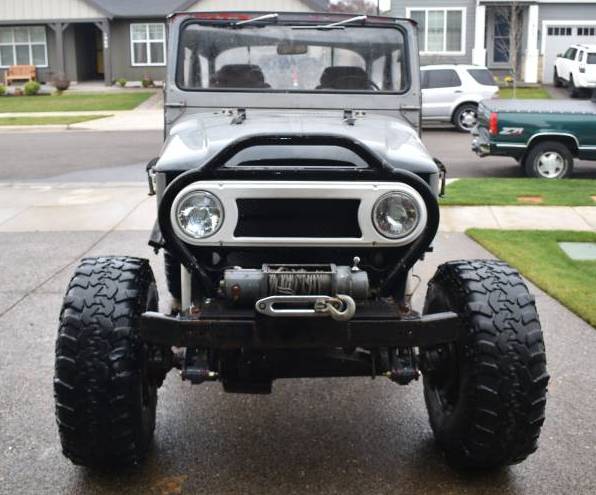

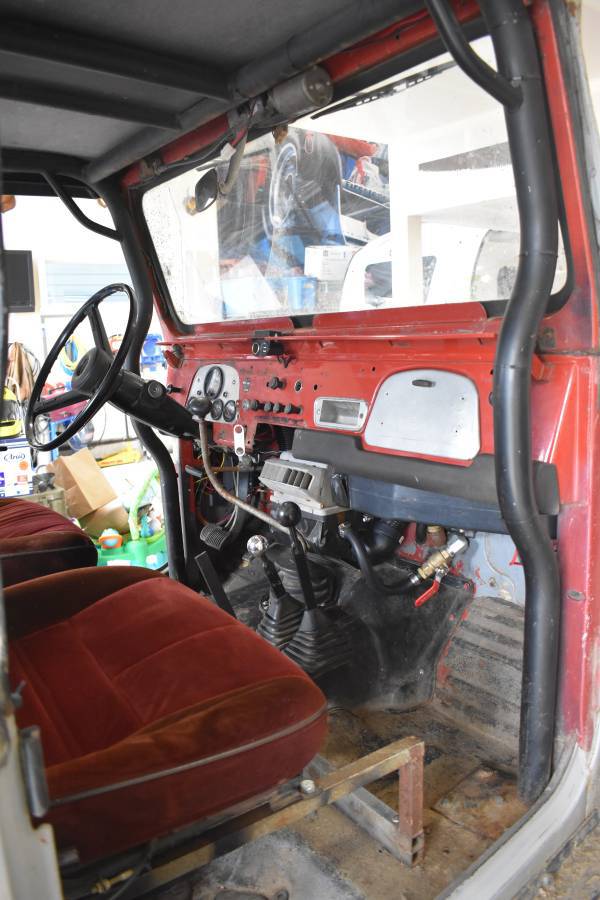

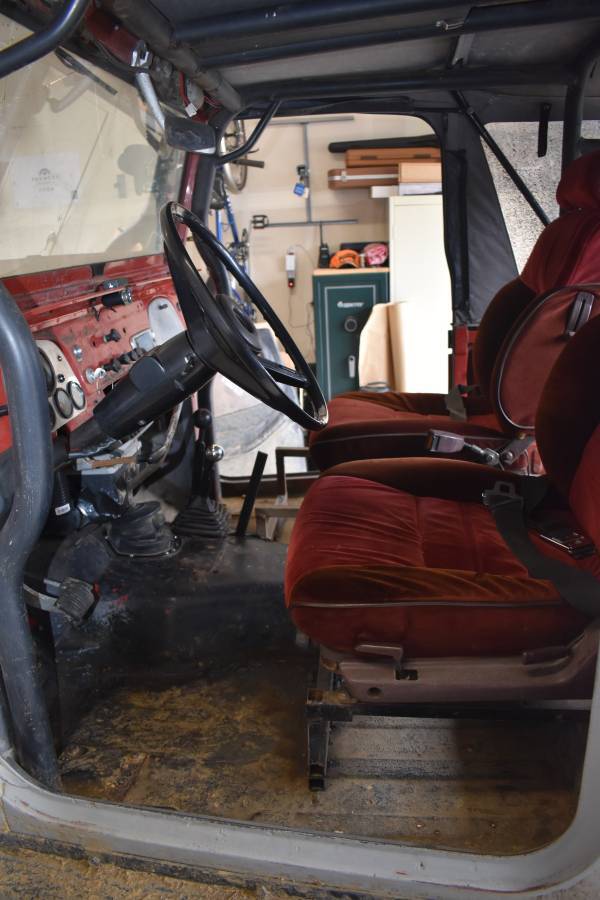

crawler, offroad, off road, wheeler, Landcruiser, FJ, Front suspension is OME HD Hilux front springs and Rancho 9000 adjustable shocks. Rear suspension is Jeep Cherokee (XJ) leaf springs with Revolver shackles and Skyjacker shocks. All new wiring with weatherproof fuse block, fuel cell with sending unit, VDO gauges with GPS Speedo, MetalTech Jackson cage tied to the frame, Warn M8000 winch, MetalTech nose guard, modified factory heater / defrost, Saganaw power steering, and a bunch more that I’m forgetting.

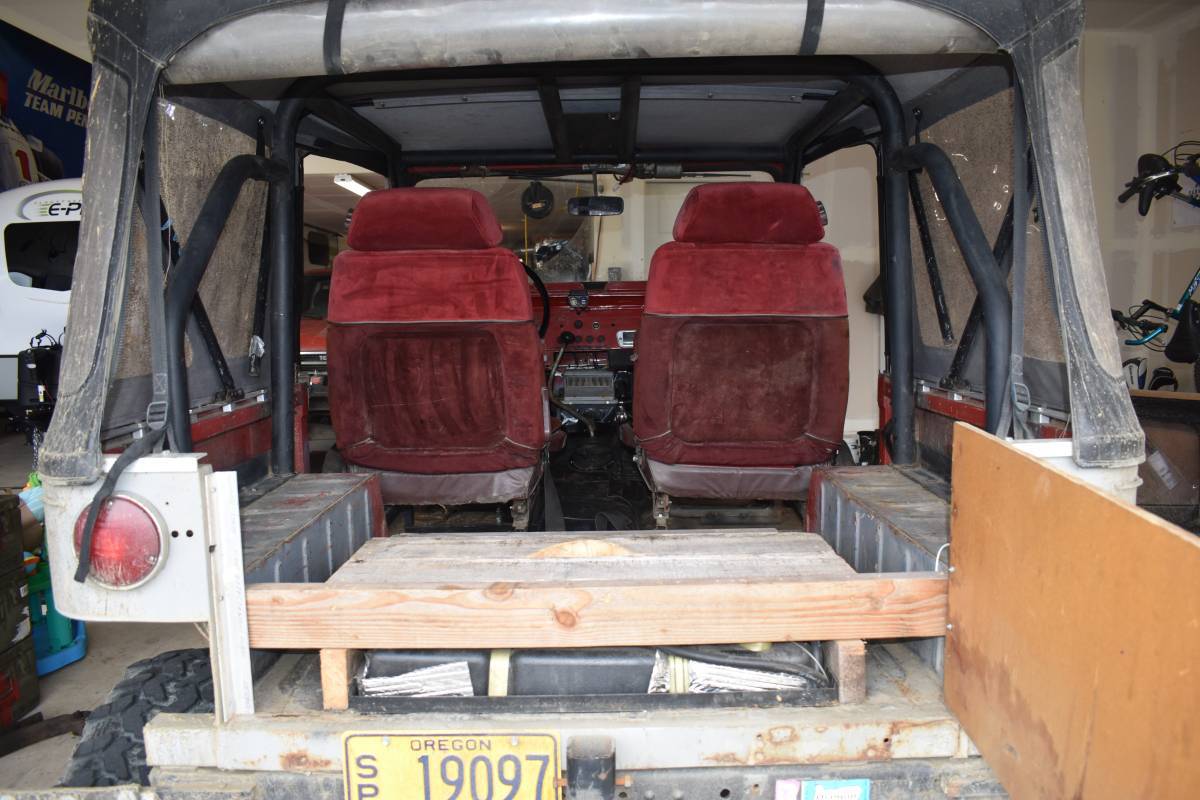

Everything works and it is very reliable, but it was set up as a trail rig, so it was built with function over form. This 40 does drive amazing on the street. It doesn’t wander or have any death wobble. However, if you are planning on doing much highway driving, you may want to put a taller gear ratio in the axles. Asking $8500 or best offer and it comes with all my extra parts including Montero folding rear seats, GM tilt steering column, and new OEM Toyota parts.
