Tube Chassis Buggy, turn-key, D44, Ford 9", 4.0 I6
Year, Make, Model
2014 Custom 2 seater
Jeep 4.0L inline 6
NP231, slip yoke eliminator
Dana 44, high pinion, 5.13, full spool, chromoly shafts
Ford 9", 5.13, full spool, chromoly shafts, disc brakes
Suspension and Steering
3 link, 16" Big Shocks coilovers
4 link, 16" ADS Air Shocks with external reservoirs
high steer knuckles, full hydro
Tires and Wheels
40"x13.50"R15, 95% tread
Front: Warn 8274 (rebuilt), upgraded motor, 1/2" synthetic winch rope; Rear: Superwinch 4500 lb, 3/8" synthetic winch rope

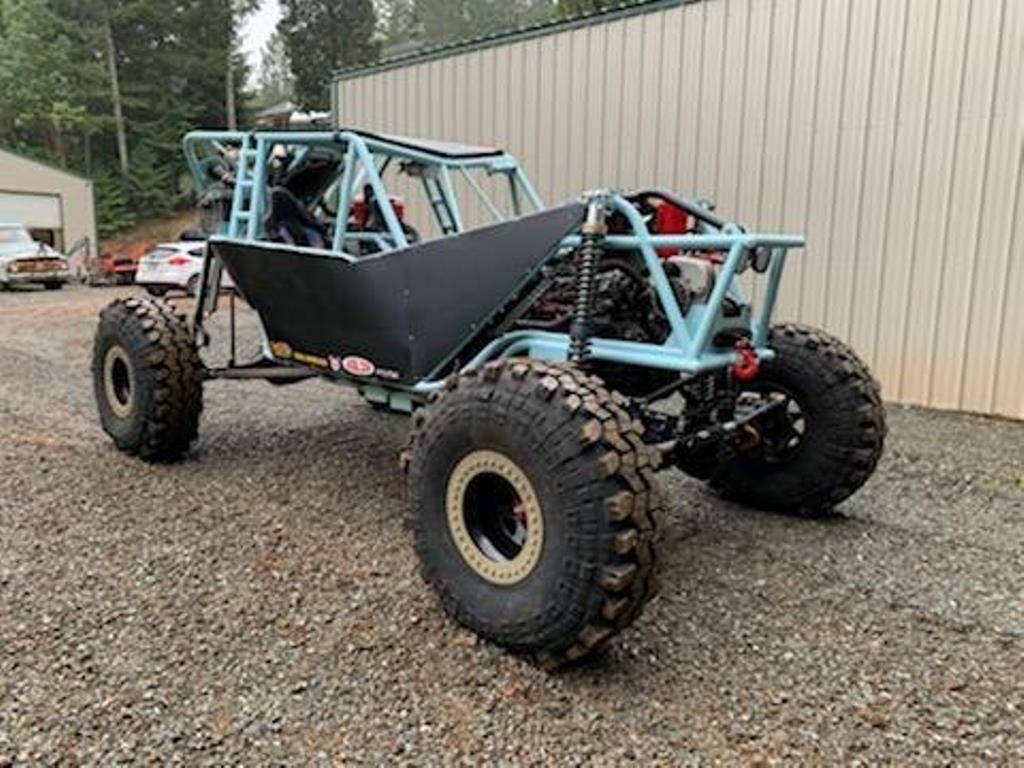

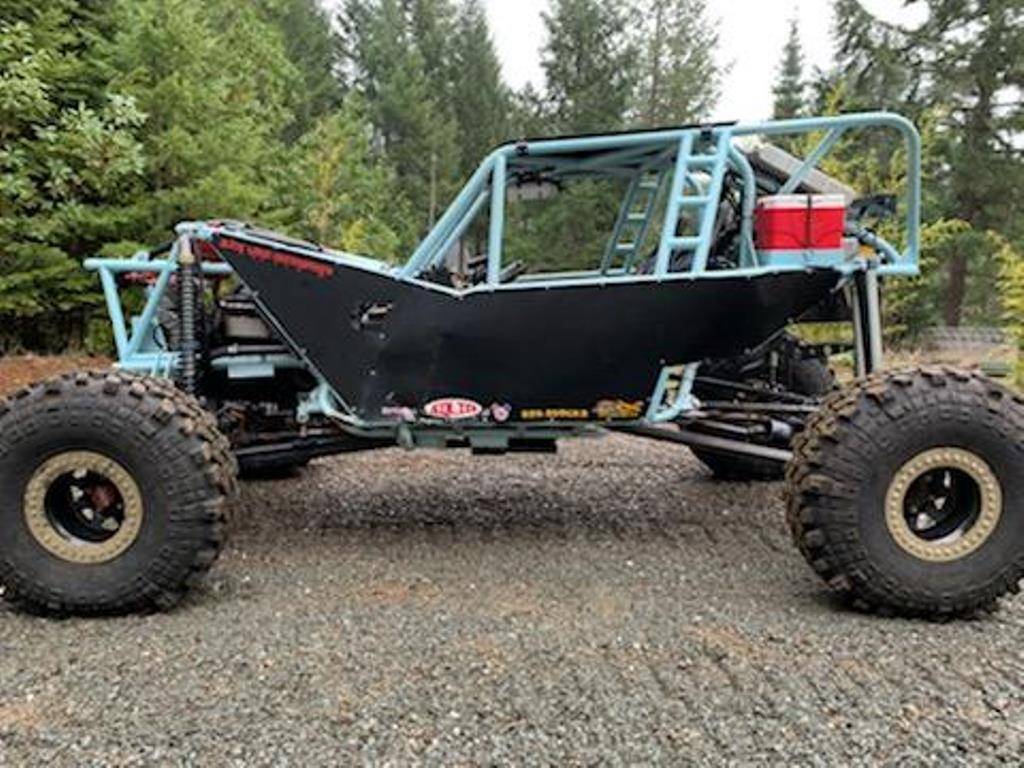

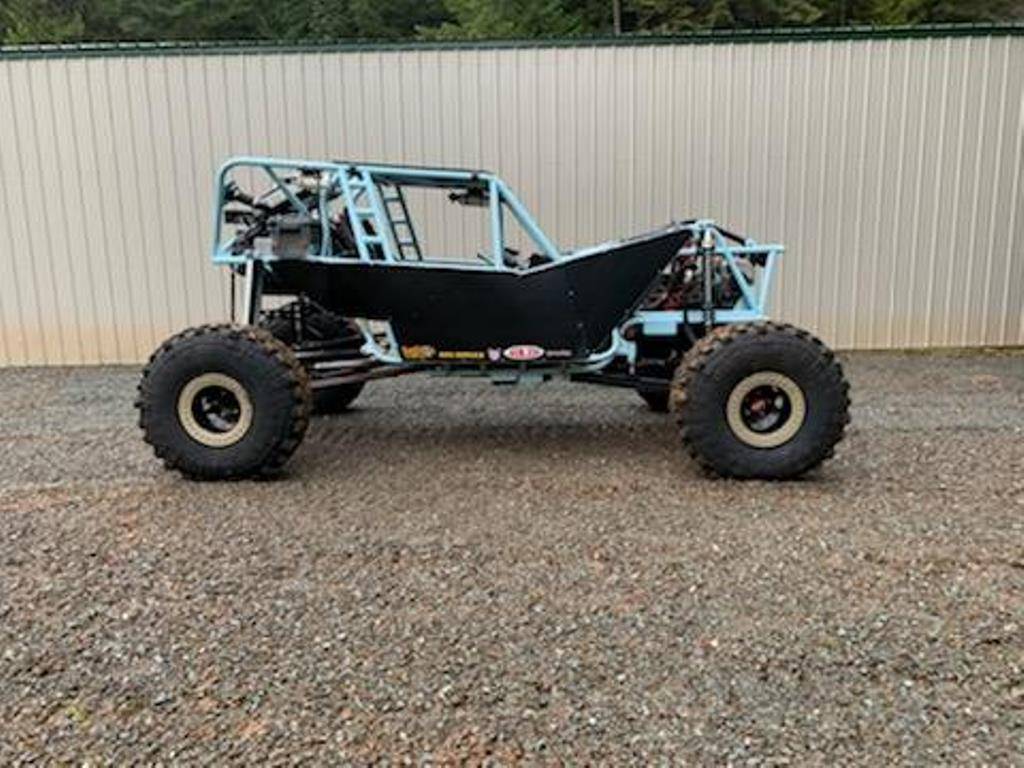

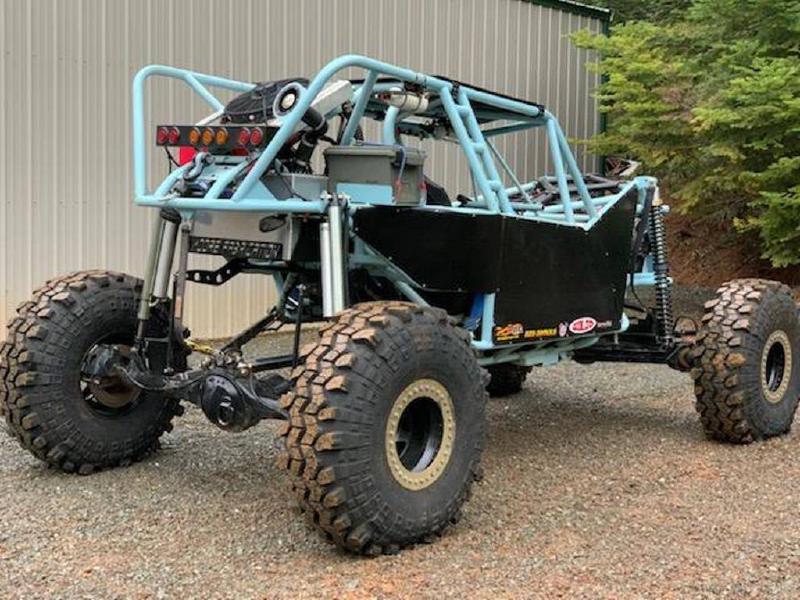

Turn Key All Tube Chassis Buggy
- All 1.75 .120 tube
- Originally built in 2014

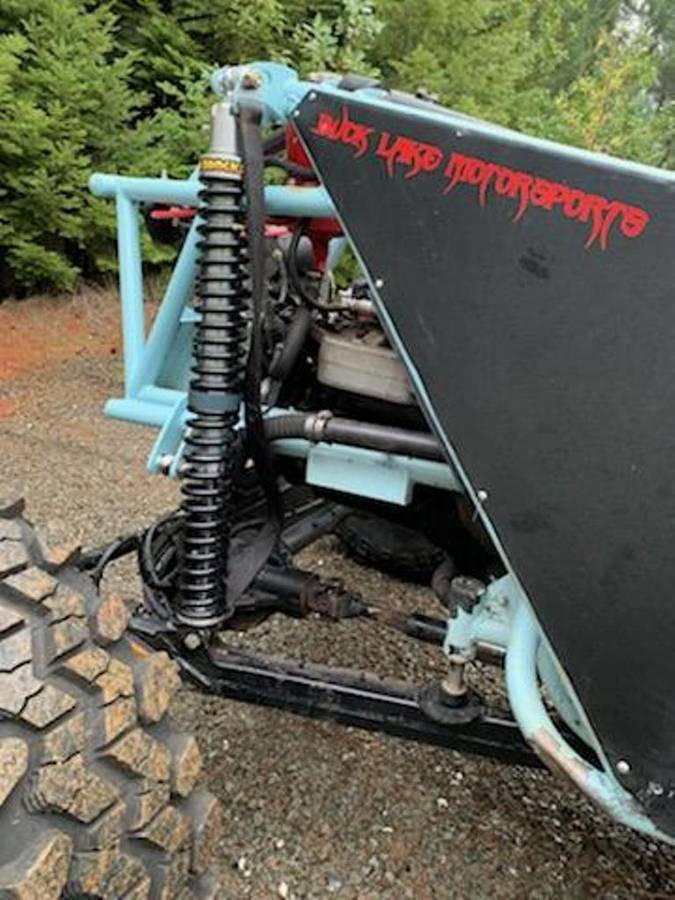

- (3) Link Front Suspension with 16’ Big Shocks coil-overs

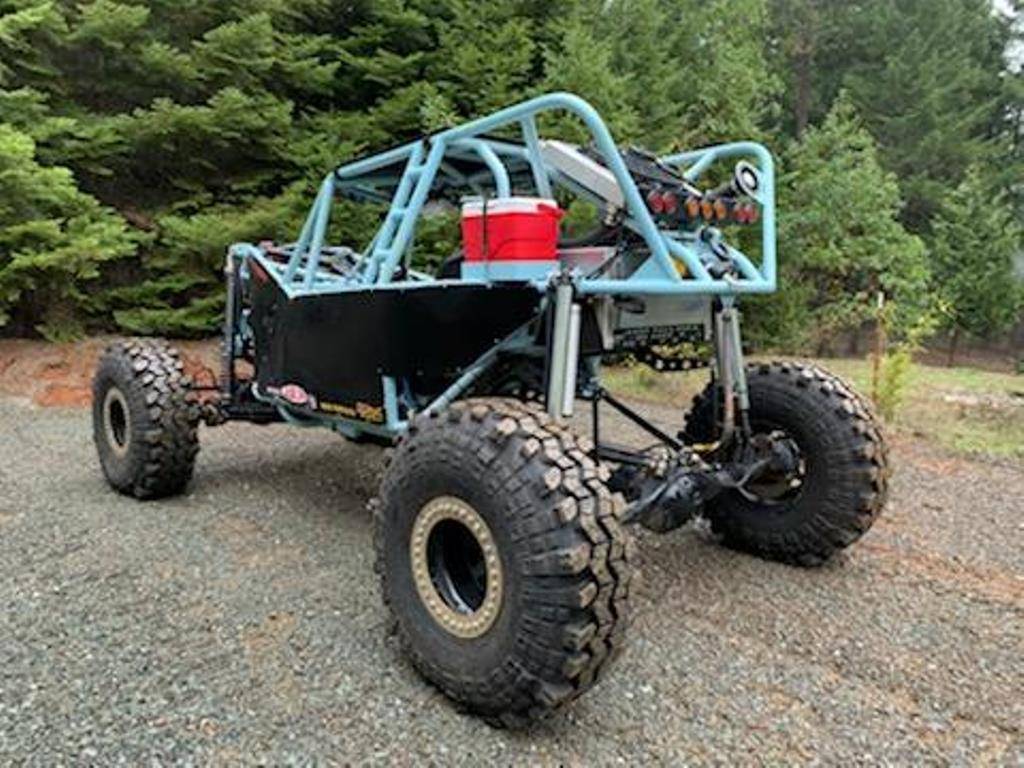

- (4) Link Rear Suspension with 16’ ADS air shocks w/ Ext Res
- Poly Can Bumps Stops in front and limiting straps all around

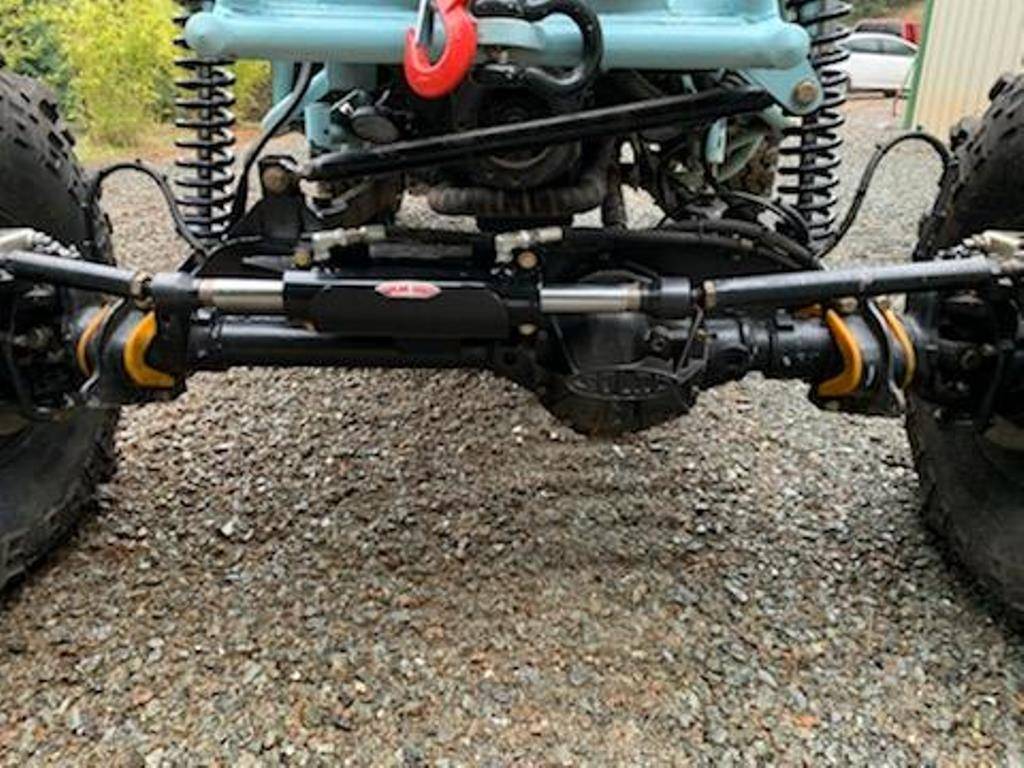

- Hp Dana 44 Front Axle with 5.13s, Full Spool, Chromoly shafts
- Full Hydro w/ high steer knuckles, GM caliper upgrade, New spindles, Solid drive flanges, Full truss, Solid diff cover.

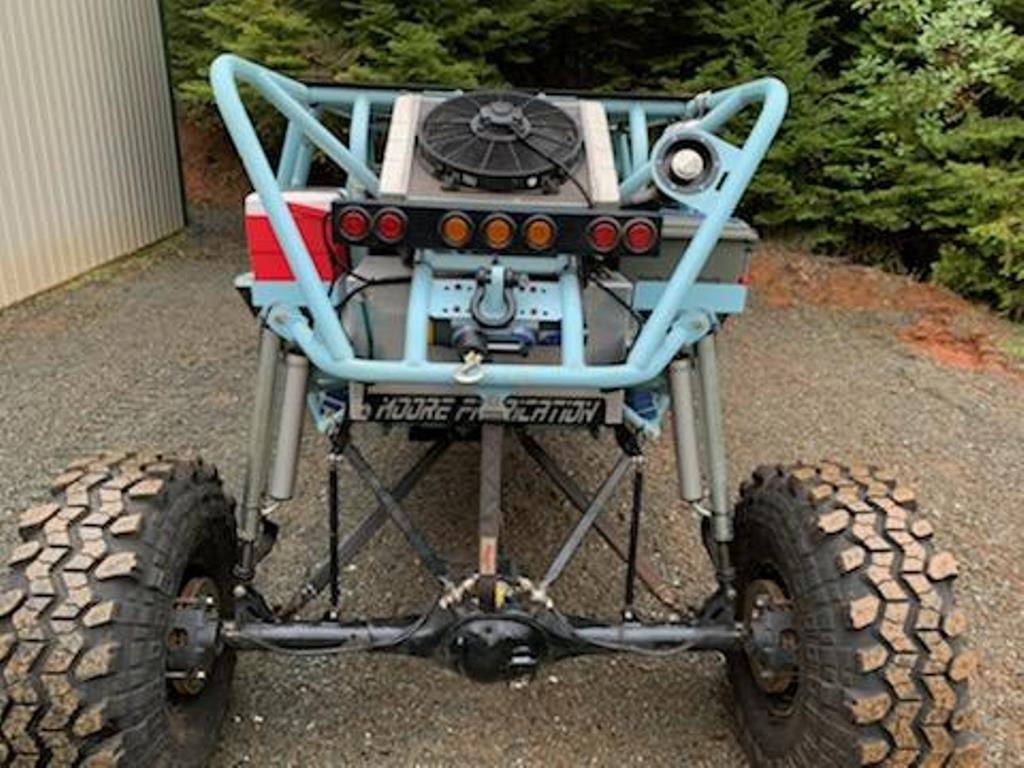

- Ford 9” Rear axle with 5.13s, Full Spool, Chromoly shafts, Disc Brake conversion, custom pinion guard.

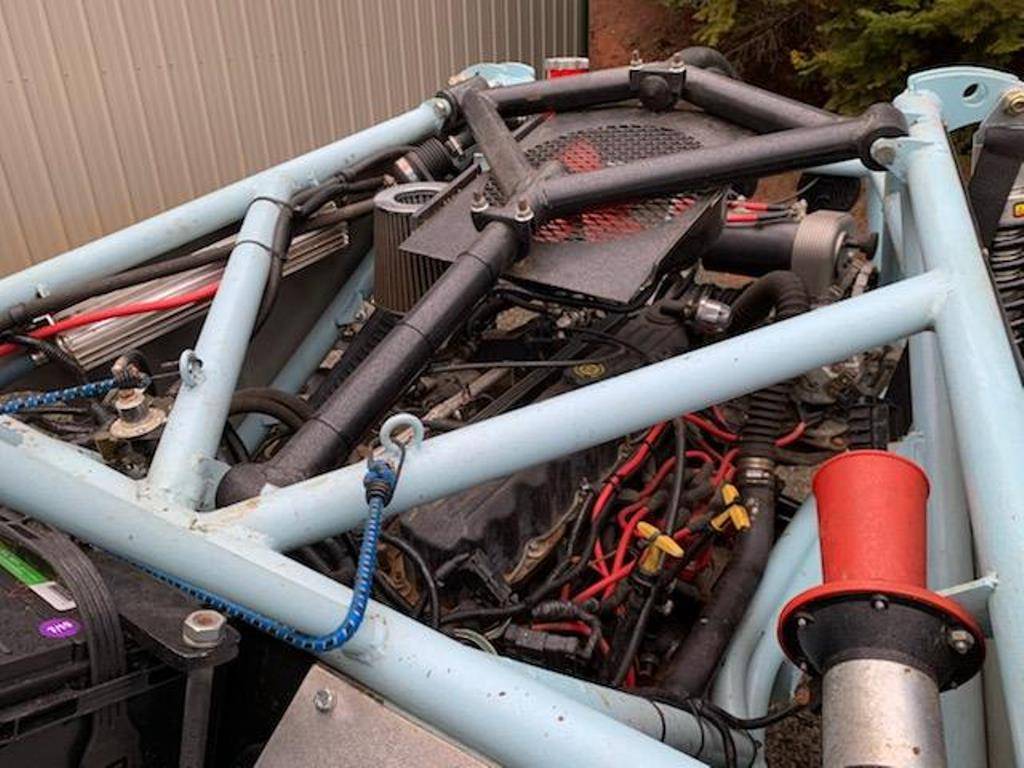

- Jeep 4.0 I6 w/larger injectors, a/c delete, TC PS pump with underdrive PSC pulley w/ huge fluid res.
- Aw4 w/ RAD full manual shifter, np231 w/sye and custom JB pistol grip shifter.

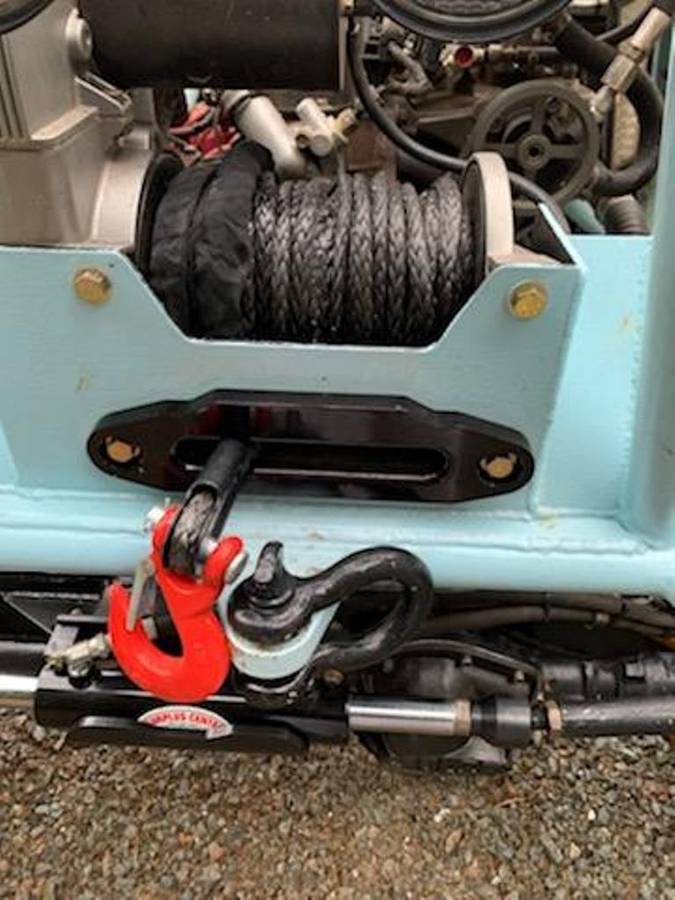

- Rebuilt Warn 8274 winch with upgraded motor and solenoid w/ 100” 1⁄2 synthetic rope.
- 3⁄16 aluminum removable roof, full floor and firewall, aluminum side panels.

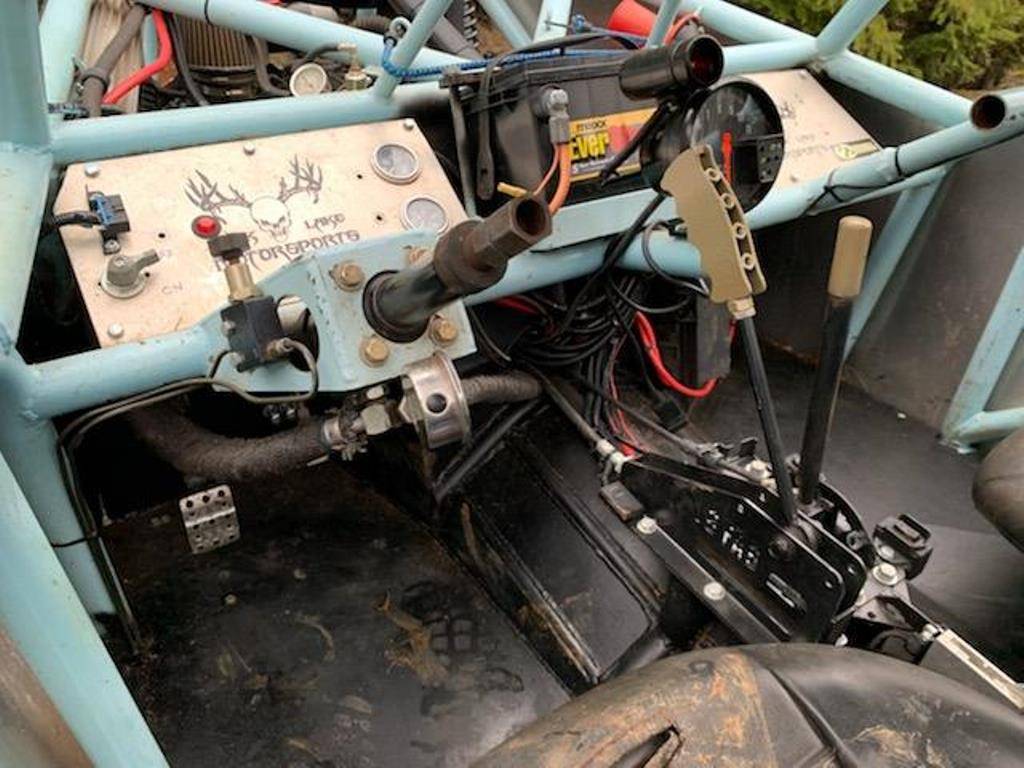

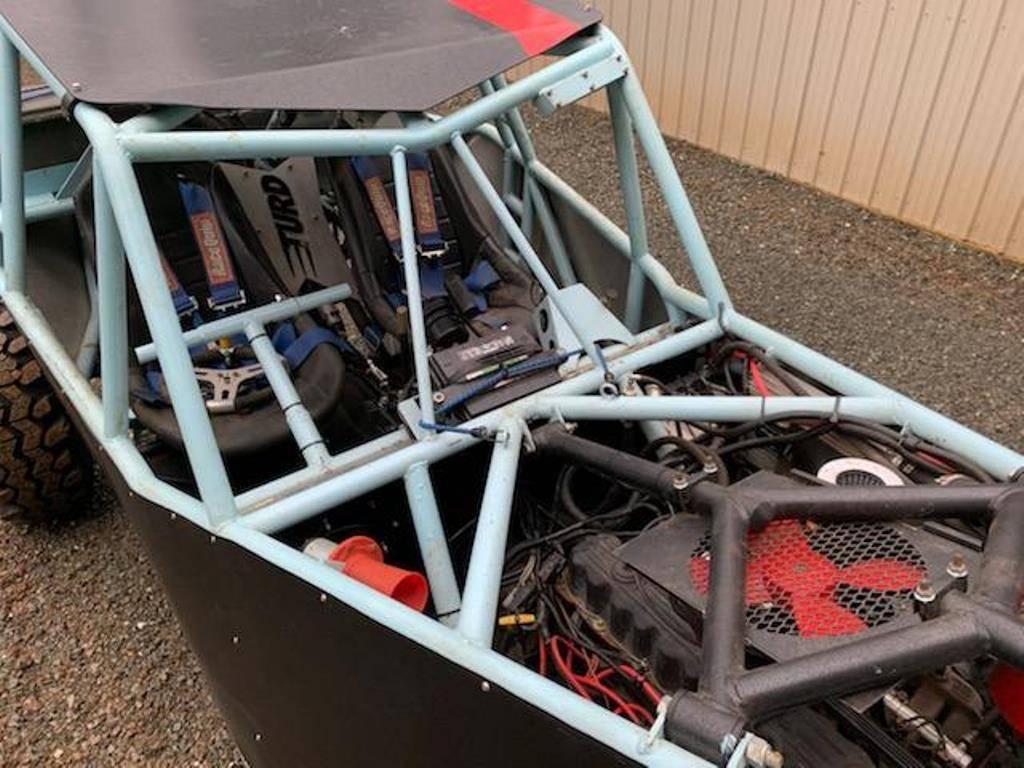

- Quick release steering wheel, coolant temp, oil pressure gauge w/ dummy light, large tach with shift light, USB connector, Plastic race seats w/ padded covers, Racequip 5 point harnesses.
- PTO style drive shafts front and rear
- rear sway bar w/ custom arms
- Aluminum fuel cell w/ remote fill
- rear mounted aluminum radiator and trans cooler w/ fan
- small cooler and tool/strap box
- fire extinguishers
- Flashing red and yellow rear lights w/ controller, white rock lights all around.
- 4500lb Superwinch with 3⁄8 synthetic rope in rear
- winches are hard wired to easy access switches
- (5) 40x13.5r15 Tires with around 95% tread on 5x10 steel rims w/ beadlocks,
- Come with Complete Extra 4.0l Motor, Transmission and Transfer Case
- Plus lots of spare parts
- Starts and Runs no problem.
$13,000 or Best Offer *** CASH Only ***
Can Deliver for $1.00 a mile one way.
