2002 Jeep Wrangler Custom Rock Crawler on 40s

Posted

$35,000

Camarillo, CA

Overview

Year, Make, Model

2002 Jeep Wrangler TJ

Link

https://ventura.craigslist.org/cto/d/camarillo-2002-jeep-wrangler-custom/7096092046.html

Miles

39,400

Posted

Last updated

Engine

Engine

6 cylinder

Fueling

Gas, EFI

Drivetrain

Transmission

Automatic, 30RH, Rebuilt in 2017

Transfer Case

Atlas 2 speed, 4.3:1

Front Axle

Currie RockJock 60 with 35 spline shafts, 5.38, Detroit Locker, JK Disc Brakes

Rear Axle

Currie Extreme 60 with 35 spline shafts, 5.38, Detroit Locker, Ford Explorer Disc Brakes

Suspension and Steering

Suspension

King Performance Series 2" Coilovers

Front Suspension

3 link

Rear Suspension

Double triangulated 4 link

Steering

Tom Lee Ram Assist

Tires and Wheels

Tires

Goodyear MTR 40"x13.5"R17

Wheels

Walker Evans 17x10 Beadlocks

Misc

Winch

Warn 9.5ti, synthetic winch rope


Build Summary:

  • Suspension. Genright Offroad Double Triangulated Four Link Rear, Three Link Front, stretched to 100” WB. Rear GR anti sway bar. GR Shock Mounts. King Performance Series Coil Over 2.0” Emulsion Shock Absorbers, F/R. King 2” x 4” Bump Stops (front). All fabricating and welding performed by Darren at Genright Offroad.

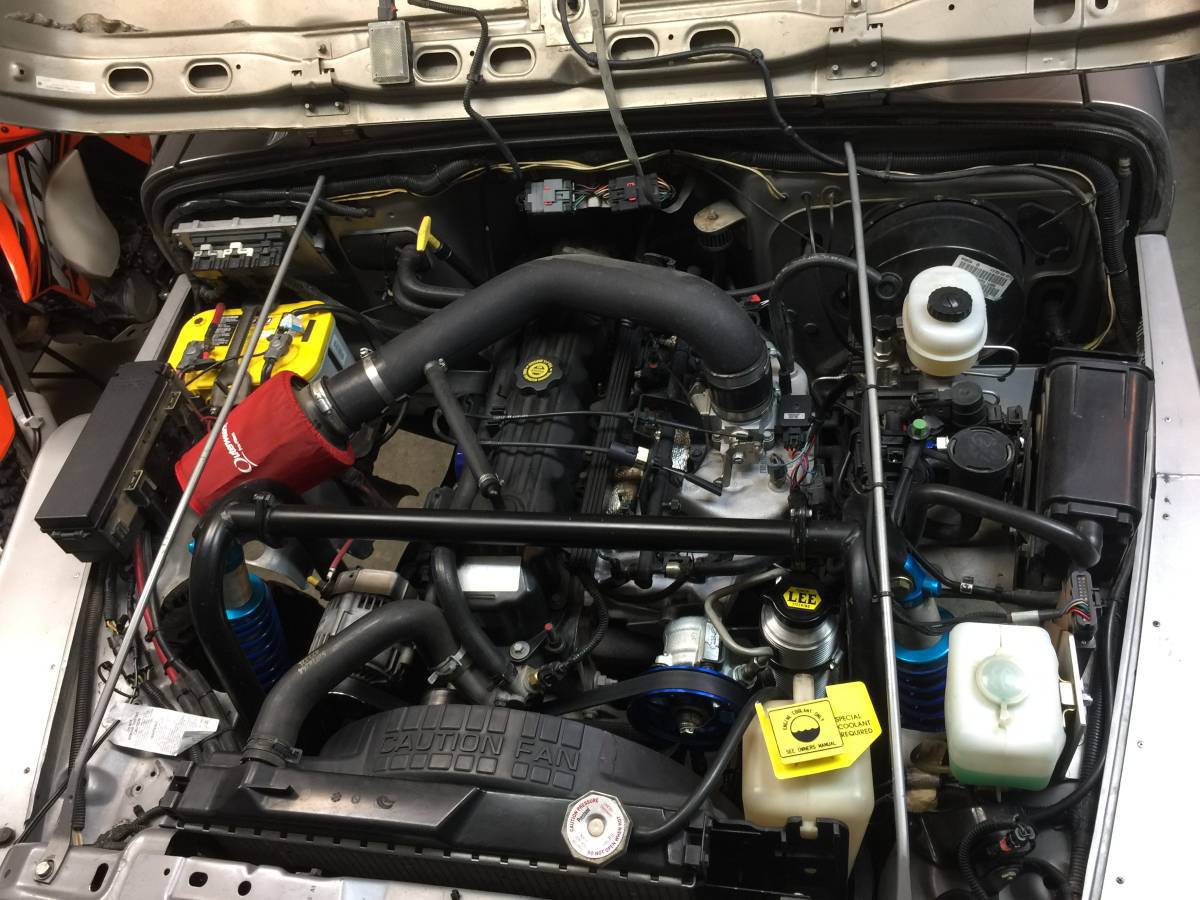

  • Engine: Edge Products Trail Jammer Performance Kit (Throttle Body and Trail Jammer Module). K&N Air Filter (39,400 miles on original engine)
  • Transmission. 30RH Automatic (rebuilt in 2017) w/ deep sump pan, additional cooler, in dash temperature gauge.
  • Transfer Case. Atlas 2 speed Transfer Case. 4.3:1

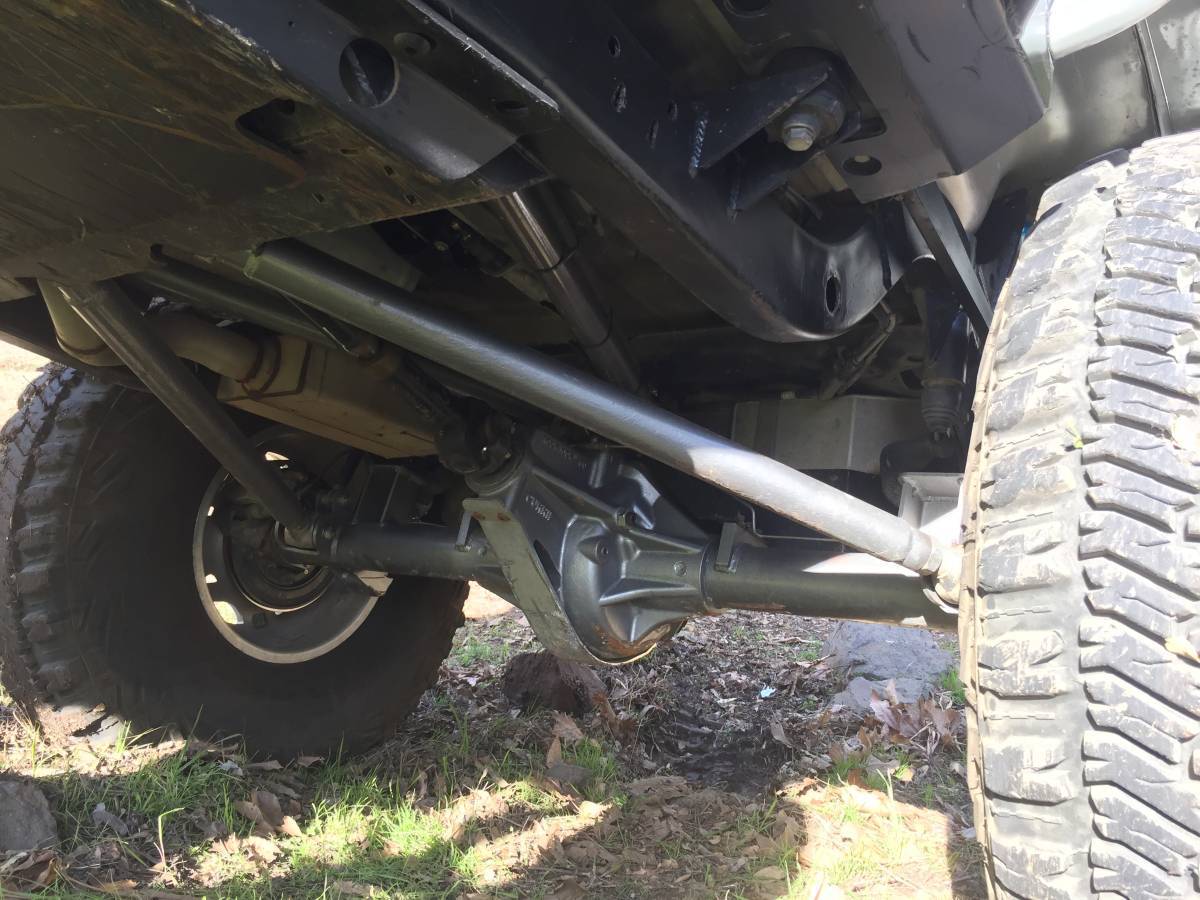

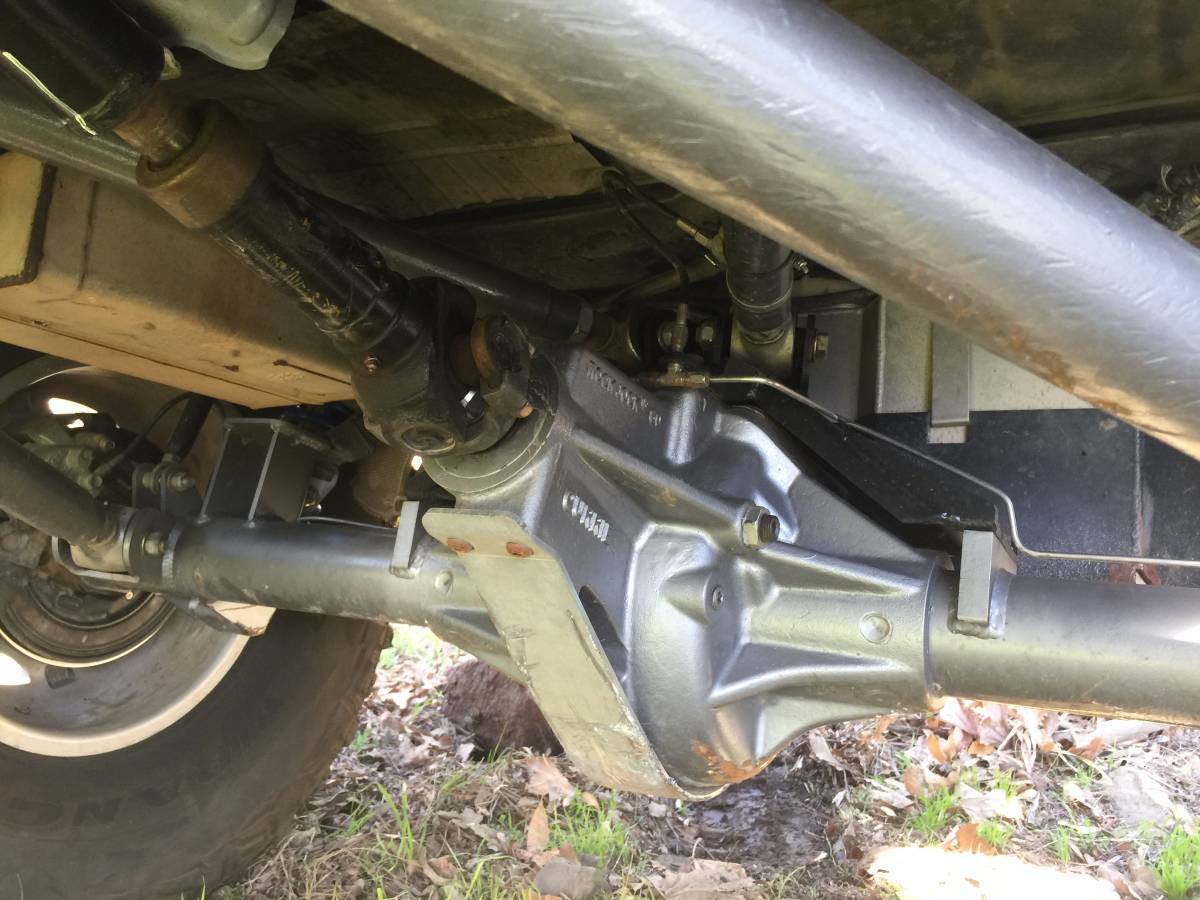

  • Axles: Rear - Currie Extreme 60 rear axle. 35 spline axle shafts, 5.38:1, Eaton Detroit Locker. Ford Explorer Disk Brakes. Front – Currie RockJock 60 with 35 spline axle shafts, 5.38:1, Eaton Detroit Locker. Jeep JK Disk Brakes. Warn hubs. Hydraulic emergency brake conversion.

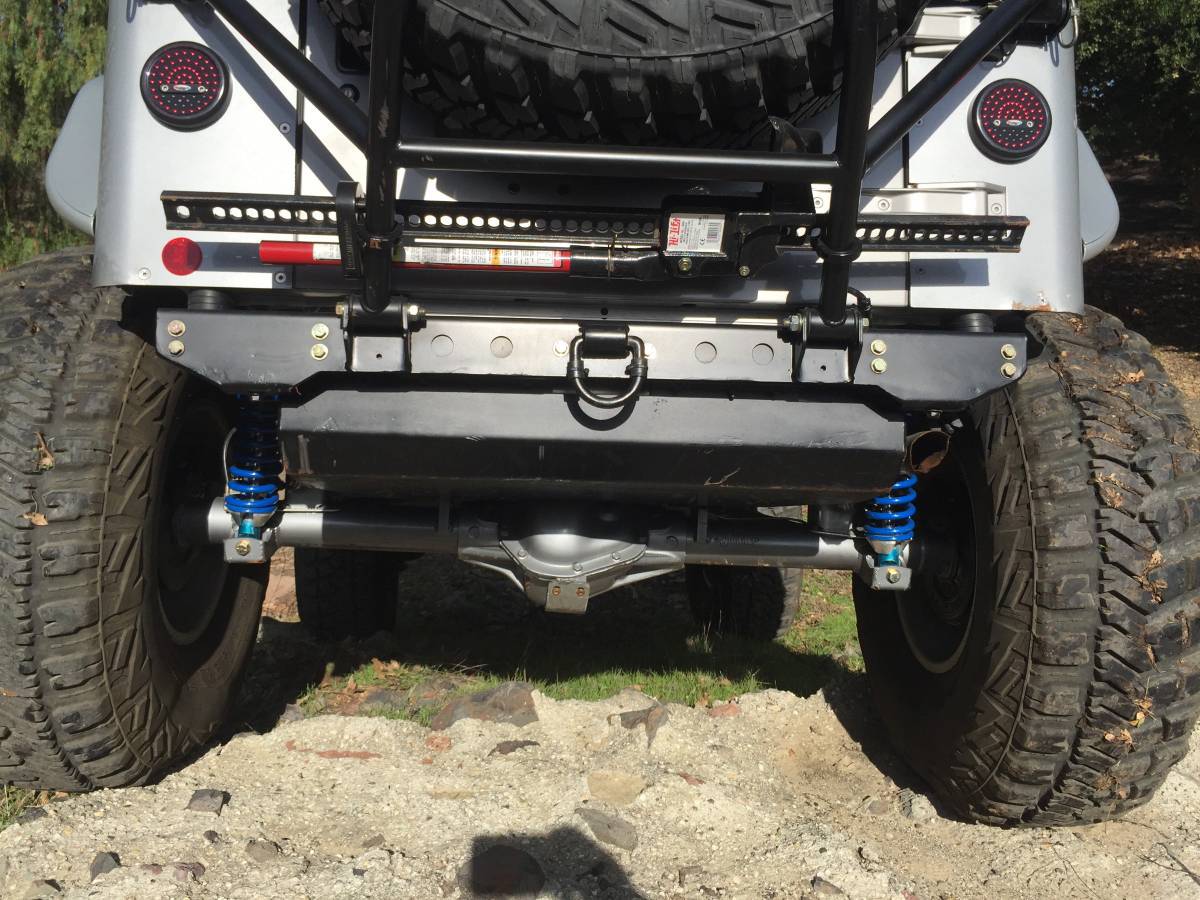

  • Armor: Genright F/R bumpers with spare tire carrier/ Hi-Lift jack mount w/ jack, Mini Boatside rocker guards, steering gear guard. Teraflex Engine, Transmission and Transfer Case skids. Genright Rear Corner Guards, Front Tube Fenders, Aluminum Gas Tank with skid. Genright “A” Pillar Guards. All parts powder coated silver or satin black.
  • Tires: Goodyear MTR 40x13.5-17 (5)
  • Wheels: Walker Evans 17x10 Beadlocks (5)
  • Onboard Air: ARB CKMTA12/24 Twin Motor on-board air compressor mounted under passenger seat
  • Top: Rampage soft top and Bestop Bikini Top

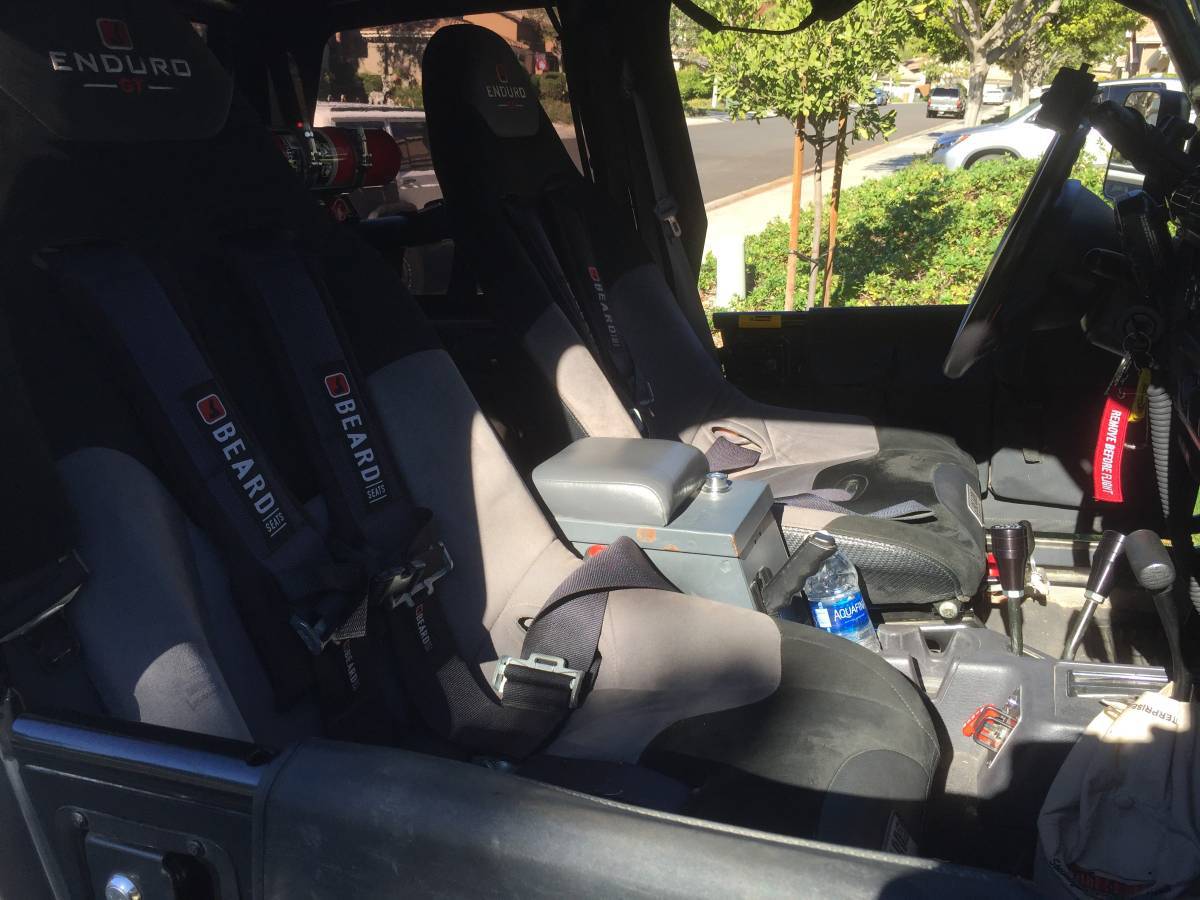

  • Seats: Beard Enduro Seats with Beard five point safety harness (original seatbelts retained)
  • Roll Protection: Poison Spider 6 point roll cage
  • Winch: Warn 9.5ti with Viking 3/8”x 80’synthetic winch line, thimble and wired in-cab remote control
  • Steering: Tom Lee Ram Assist with large capacity reservoir, filter and remote cooler.
  • Coms: Yaesu FT-2900 2 meter and Cobra CB
  • Security: Tuffy Security Products Console and Tuffy Rear Aluminum Storage Box with Tie Down Brackets.
  • Navigation: Garmin Montana wired cradle
  • Doors: OEM half doors and High Rock 4x4 Element Lower Door Frame and Saddle Bags.
  • Fire Extinguisher: Two H3R HalGuard Clean Agent extinguishers.
