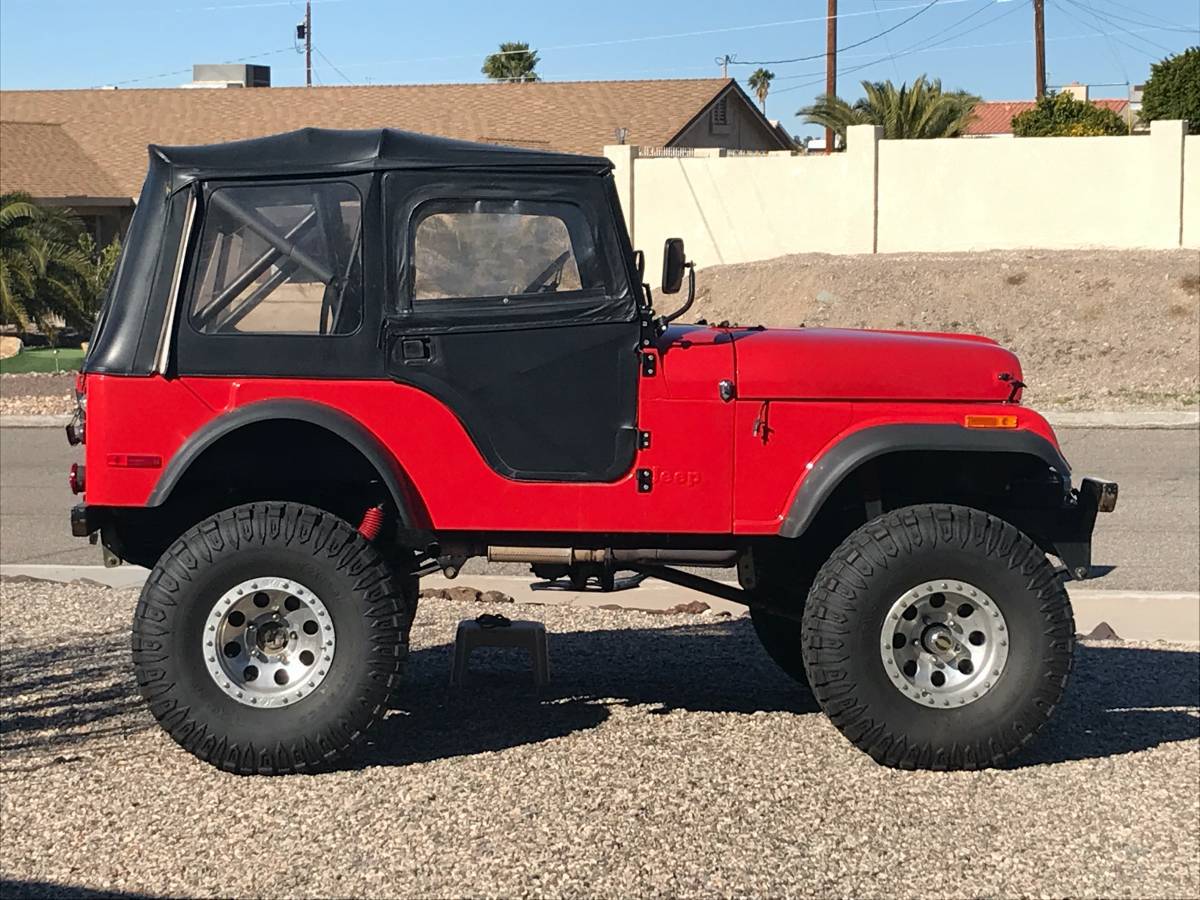

1975 Jeep CJ5, TBI V6, D44s with ARBs
Lake Havasu, AZ
Year, Make, Model
1975 Jeep CJ5
V6, rebuilt and balanced
Chevy Dana 44, 5.38, ARB Air Locker
Scout Dana 44, 5.38, ARB Air Locker
Suspension and Steering
Spring over with YJ leaf springs
Tires and Wheels
35" Interco TrXus MT
1975 CJ5, 63,615 mi.
Rebuilt and balanced motor has less miles. New fuel tank with first fill up in it.

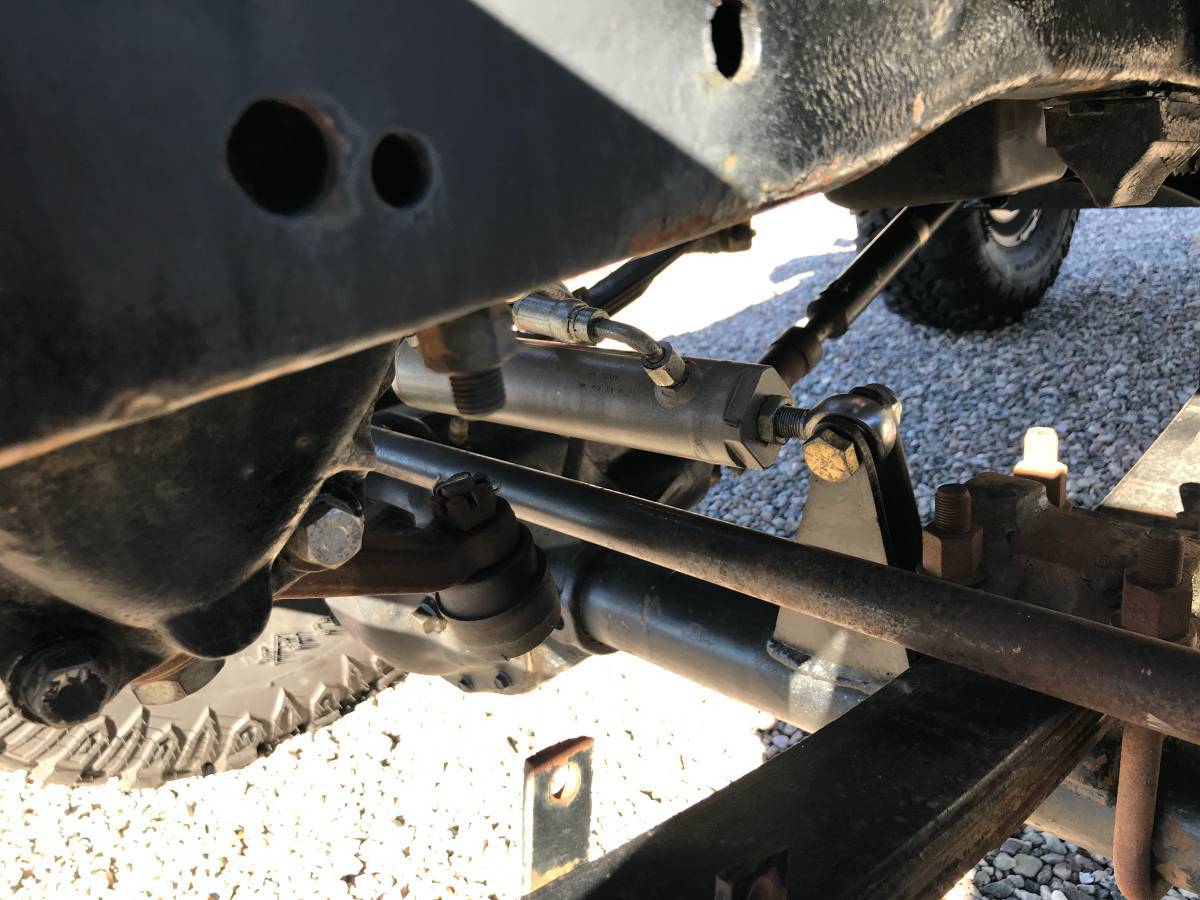

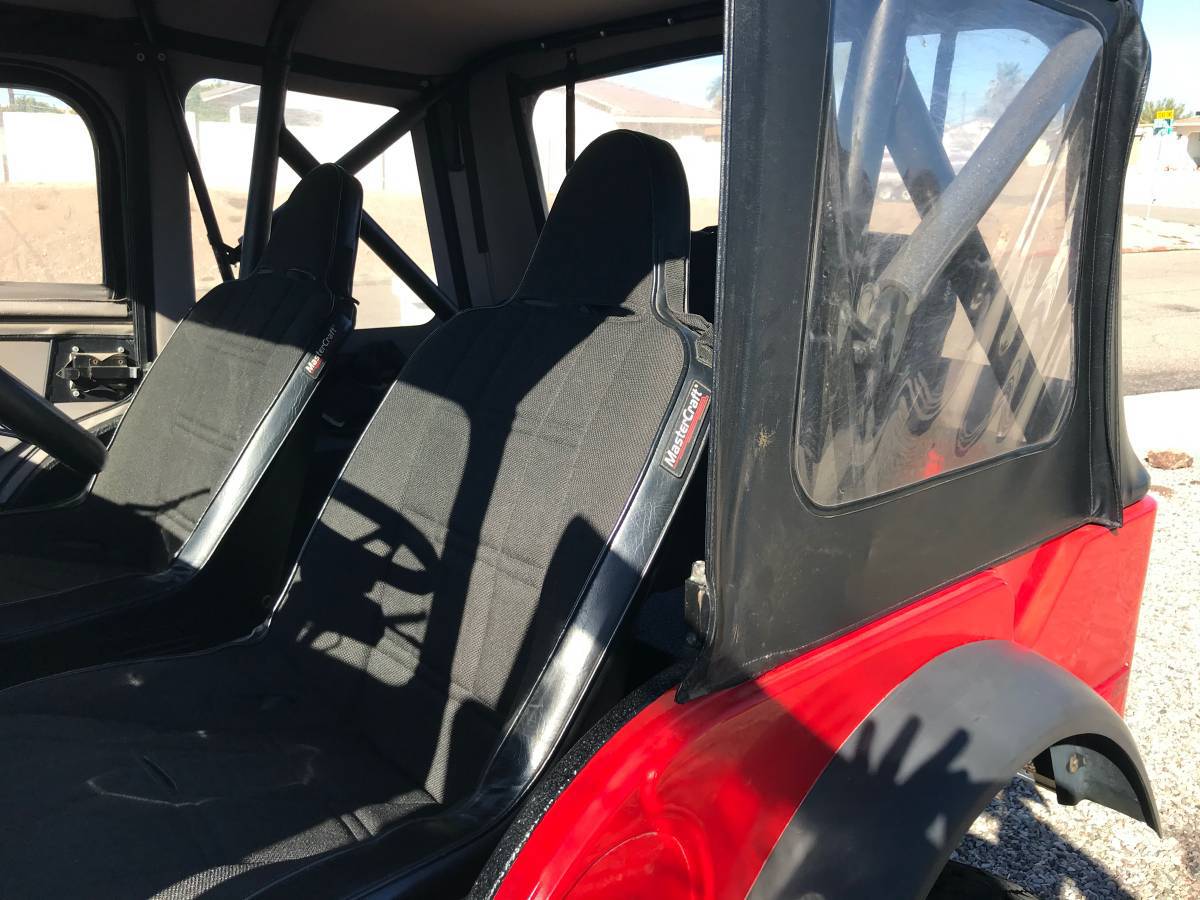

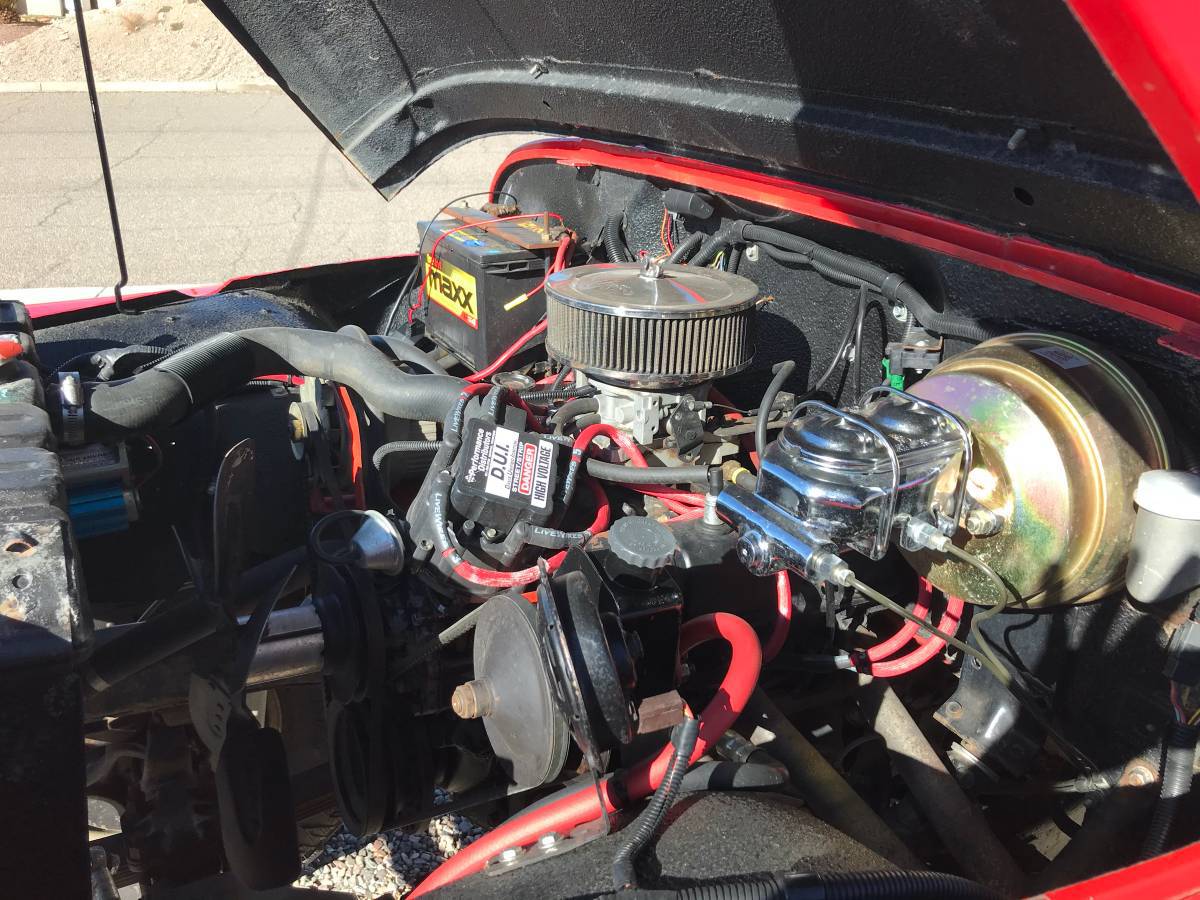

This 1975 Jeep CJ-5 was built in Grand Junction Colorado, to take on most of the challenging Colorado trails and still be street driveable. New set of 35” interco Trxus mud terrain tires. The dauntles v-6 was professionally rebuilt in rifle Colorado, I have the blueprint sheet, which includes a parts list and part number list. The heads were drilled to install 12 spiral grooved cast iron guides, also lowered the seal to clear the valve retainer with a high lift cam. It has a comp cam spring set #980-12 and a cloy double row timing chain was installed. Throttle body fuel injection was added for the high altitude trails. The front and rear axles are a scout dana 44 in the rear along with a Chevy dana 44 in the front. The axles were rebuilt and 5:38 Ring and pinion installed along with ARB air lockers front and rear. The bolt patterns are the standard jeep 5 on 5.5”. Disc brakes were fitted on all four wheels with a master cylinder and power booster from Off Again off road in Farmington, New Mexico. New springs, shocks and lift kit was installed using the wider YJ springs. It has new comfortable mastercraft seats front and rear. Have receipts for most of the work, lots of parts receipts. New Bestop, Wiring is perfect,all loomed and perfect high end connectors, wired to tow. She’s a oner. The headers make the odd fire V6 sound great. Winch w/remote.
